STRUMENTAZIONE DI MISURA
La strumentazione di misura Geotest include counter / timers, DMMs, digitizers, e RF power analyzers. Tutti questi prodotti sono disponibili per i diversi bus: PXI, PCI e ISA e sono perfettamente integrabili nell’ampia gamma di chassis Geotest.

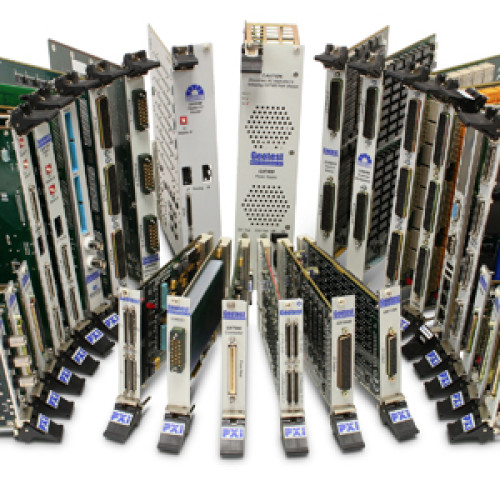

Strumentazione di misura
La strumentazione di misura Geotest include counter / timers, DMMs, digitizers, e RF power analyzers.
Tutti questi prodotti sono disponibili per i diversi bus: PXI, PCI e ISA
Digital Multimeter Instrumentation |
|||
![]() |
SMX204x Series | ![]() |
6½ Digit Digital Multimeter (DMM) PXI Card |
![]() |
SMX206x Series | ![]() |
7½ Digit Digital Multimeter (DMM) PXI Card |
![]() |
SM204x Series | ![]() |
6½ Digit Digital Multimeter (DMM) PCI Card |
![]() |
SM206x Series | ![]() |
7½ Digit Digital Multimeter (DMM) PCI Card |
RF Power Analyzer Instrumentation |
|||
![]() |

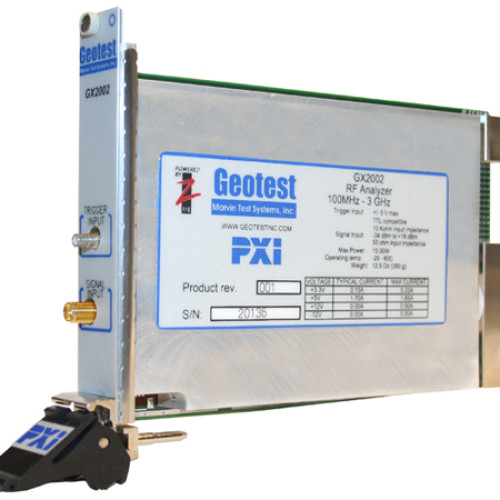

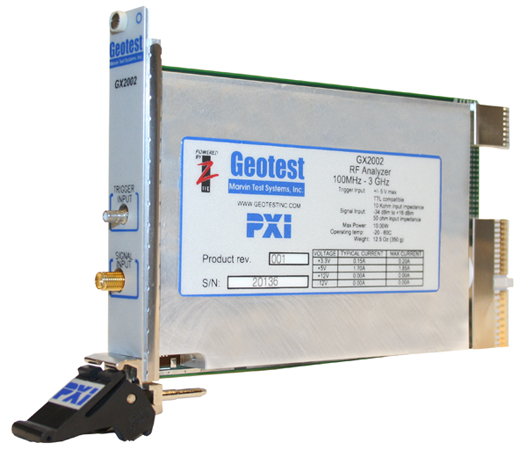

GX2002 | ![]() |
RF Power Analyzer PXI Card |
Counter Timer Instrumentation |
|||
![]() |
GTX2200 Series | ![]() |
Time Interval Counter PXI Card |
![]() |
GC2200 Series | ![]() |
Time Interval Counter Card |
![]() |
GT200-10 | ![]() |
Time Interval Counter with TCXO Card |
Digitizer Instrumentation |
|||
![]() |
GX2472 | ![]() |
Dual Channel Digitizer PXI Card |
![]() |
TE6100 | ![]() |
Dual Channel, 50MHz, 100MS/Sec DSO, Spectrum Analyzer, DVM, and Transient Recorder PXI Cards |
Stimoli
PXI Arbitrary Waveform ( AWG ) e Programmable Function Generators insieme a DC source sono disponibili per l’applicazione di stimoli durante il test.
Signal Source Instrumentation |
|||
![]() |

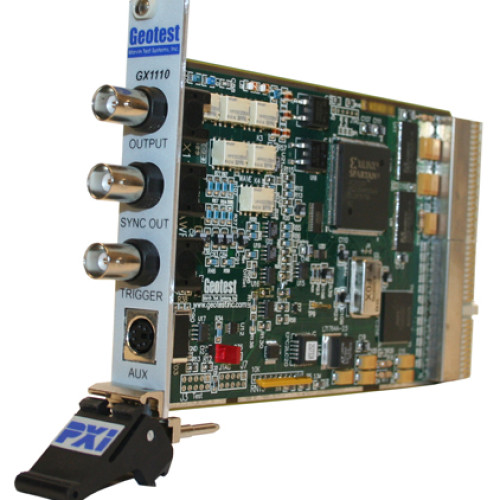

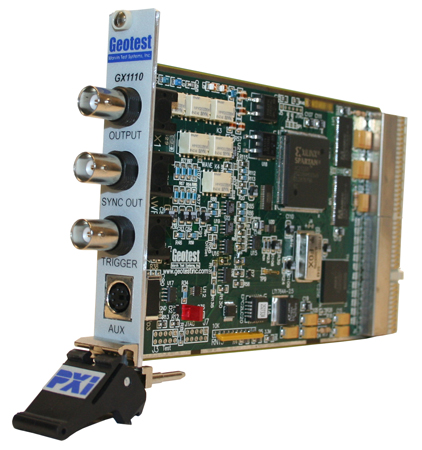

GX1110 | ![]() |
Arbitrary Function Generator PXI Card |
![]() |
GX1200 Series | ![]() |
Arbitrary Function Generator PXI Card ![]() |
![]() |
GX1222 | ![]() |
Wideband Amplifier PXI Card |
![]() |
GC1300 | ![]() |
Arbitrary Waveform Generator PCI Card |
![]() |
GP1552A Series | ![]() |
Dual Channel, Programmable Pulse Generator – HP 8160A, Wavetek 859 Compatible |
![]() |
GP1612H Series | ![]() |
Programmable Pulse Generator – HP 8112A Compatible |
![]() |
GP1616H Series | ![]() |
Programmable Signal Source / Function Generator – HP 8116A Compatible |
![]() |
GP1650W | ![]() |
Arbitrary Waveform Generator – Wavetek 175 compatible |
![]() |
GP1665H | ![]() |
Programmable Signal Source/Function Generator – HP 8165A Compatible |
![]() |
GP1665W | ![]() |
Programmable 50 MHz Waveform Synthesizer – Wavetek 178 Compatible |
![]() |
WaveEasy | Analog Waveform Development and Analysis Software | |
Standards Source Instrumentation |
|||
![]() |

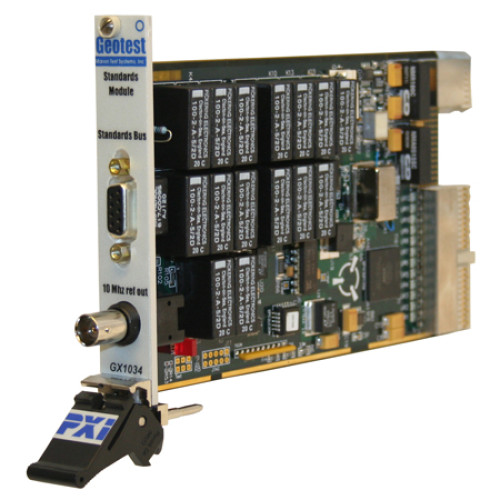

GX1034 | ![]() |
PXI Standards Module for Test Systems |
![]() |
GT1034 | ![]() |
Precision Reference ISA Card |
Programmable D/A Source Instrumentation |
|||
![]() |
GX1642 | ![]() |
Analog Output PXI Card |
![]() |
GX1648 | ![]() |
Analog Output PXI Card |
![]() |
GX1838 Series | ![]() |
Precision Multifunction DC Source PXI Card |
![]() |
GT7864 Series | ![]() |
Multi-Channel Programmable Discrete Output GTXI Card |
![]() |
GT1648 Series | ![]() |
Analog Output ISA Cards |

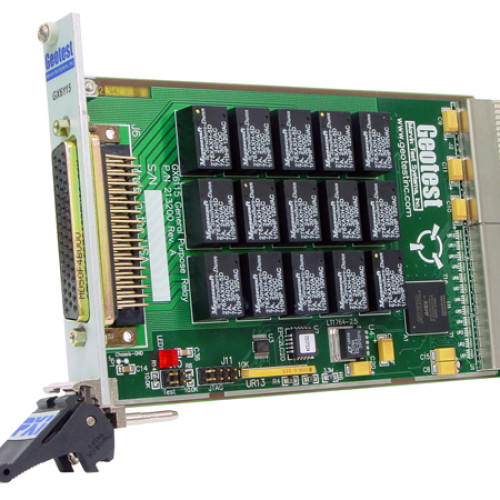

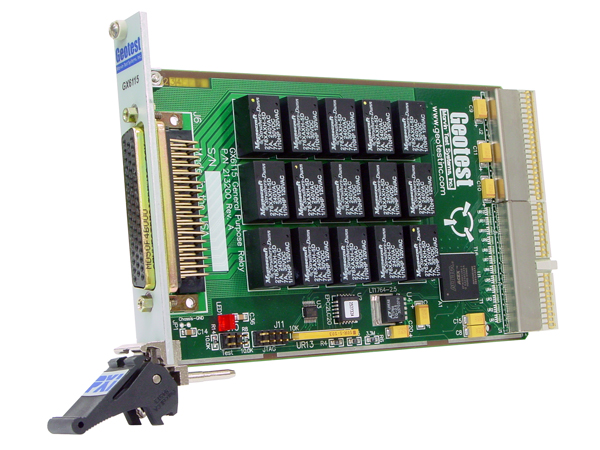

Sistemi / Schede di switching
Le schede switching 3U e 6U PXI,matrici, multiplexer, RF multiplexer sono affidabili, semplici da usare e user friendly. Il connettore di interfaccia D-sub style è la caratteristica unica delle schede switching PXI Geotest.
Alimentatori / Power Supply
Sono disponibili in PXI e in GTXI alimentatori High power, dual channel PXIe precision DC source .
Power Supply Mainframe and Modules Instrumentation |
|||
![]() |
GX7404 | ![]() |
Power Interface and Prototype PXI Card |
![]() |

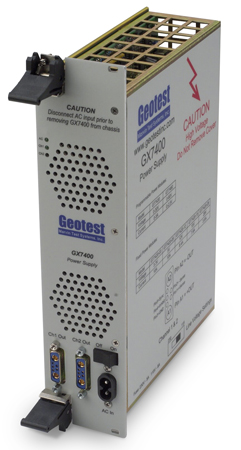

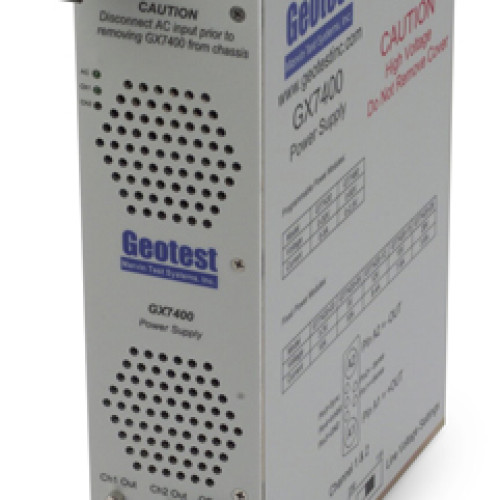

GX7400A | ![]() |
Dual Output PXI Power Supply |
![]() |
GT7404 | ![]() |
Power Interface and Prototype GTXI Card |
Precision DC Source Instrumentation |
|||
![]() |
GX1642 | ![]() |
Analog Output PXI Card ![]() |
![]() |
GX1648 | ![]() |
Analog Output PXI Card |
![]() |
GX1838 Series | ![]() |
Precision Multifunction DC Source PXI Card |
![]() |
GT1648 Series | ![]() |
Analog Output ISA Cards |
Bus Expander
PXI Bus Expanders e PXI Interface Cards per interfaccia PXI e PXI Express
Legacy Replacement e altro
Power Interfaces, Schede per la prototipazione e Programmable Resistor Cards
Legacy Replacement: sostituzione di strumenti/sistemi obsoleti quali Program Pulse Generator, Function Generator, AWG e altro. Nessuna modifica del SW originale è richiesta.
Una lista parziale degli strumenti disponibili contiene:
- HP 8160A, 8112A, 8116A, 8165A
- Wavetek 859, 175, 178
Legacy Replacement GPIB
